Loco Finder

Electric Locomotive

VECTRON (MS)


The Vectron (MS) from Siemens is a four axle multisystem locomotive. The locomotive is equipped with the ETCS safety system as well as the specific voltage systems for Germany, Austria and Italy, which allows cross-border traffic between the three countries.

Quickinfo

ManufacturerSiemens
Build since2010
SuppliesElectric
PowerAC 25 kV 6,400 kW / 15 kV 6,400 kW
DC 3 kV 6,000 kW / 3 kV 2,600 kW
Countries/HomologationsD/A/IT
Safety SystemsPZB, LZB, SCMT, ETCS

Technical details VECTRON (MS)

Data general
ManufacturerSiemens
Build since2010
Countries/HomologationsD/A/IT
Dimensions
Track gauge1,435 mm
Wheelset arrangementBo’Bo’
Wheel diameter1,250 mm
Length over buffer18,980 mm
Total height3,860 mm
Total width3,012 mm
Weight
Total weight90 tons
Wheelset load22,5 tons
Traction, Engine & Power
SuppliesElectric
PowerAC 25 kV 6,400 kW / 15 kV 6,400 kW
DC 3 kV 6,000 kW / 3 kV 2,600 kW
Voltage SystemD/A = AC 15 kV, 16.7 Hz~ / AC 25 kV, 50 Hz~
IT = DC 3 kV
Speed & Traction performance
Maximum speed160 km/h
Starting tractive effort300 kN
Continuous tractive effort250 kN
Safety SystemsPZB, LZB, SCMT, ETCS

Countries/Homologations

Countries/Homologations VECTRON (MS)
D/A/IT

Alpha Trains Belgium N.V.
Leon Stynenstraat 75A
2000 Antwerp
+32 3 808 77 00
locomotives_at_alphatrains.eu

TRAXX BR 186


The BR 186 is a multisystem locomotive from Bombardier‘s Traxx family. The locomotive can be used for passenger and freight operations. Alpha Trains is one of the main lessors of this asset.

Quickinfo

ManufacturerBombardier
Build since2007 - 2009
SuppliesElectric
Power5,600 kW
Countries/HomologationsD/A/PL,D/B/F,D/A/B/NL
Safety SystemsPZB, LZB, SHP, KVB, TBL1+, Memor, ETCS

Technical details TRAXX BR 186

Data general
ManufacturerBombardier
Build since2007 - 2009
Countries/HomologationsD/A/PL
D/B/F
D/A/B/NL
Dimensions
Track gauge1,435 mm
Wheelset arrangementBo’Bo’
Wheel diameter1,250 mm
Length over buffer18,900 mm
Total height4,270 mm
Total width2,977 mm
Weight
Total weight86 tons
Wheelset load21.25 tons
Traction, Engine & Power
SuppliesElectric
Power5,600 kW
Voltage System15 kV, 16.7 Hz~ AC / 1.5 kV DC
25 kV, 50 Hz~ AC / 3 kV DC
Speed & Traction performance
Maximum speed160 km/h (in D, B, NL)140 km/h (in A, PL, F)
Starting tractive effort300 kN
Continuous tractive effort252 kN
Minimum curve radius100 m horizontal
300 m vertikal
Safety SystemsPZB, LZB, SHP, KVB, TBL1+, Memor, ETCS

Countries/Homologations

Countries/Homologations TRAXX BR 186
D/A/PL
D/B/F
D/A/B/NL

Alpha Trains Belgium N.V.
Leon Stynenstraat 75A
2000 Antwerp
+32 3 808 77 00
locomotives_at_alphatrains.eu

TRAXX BR 185.1


The BR 185.1 is an AC (alternating current) locomotive from Bombardier‘s Traxx family. The locomotive were built from 2001 to 2004, and can be used for passenger and freight operations. Alpha Trains is one of the main lessors of these assets.

Quickinfo

ManufacturerBombardier
Build since2001 - 2004
SuppliesElektric
Power5,600 kW
Countries/HomologationsD,D/A,D/A/CH
Safety SystemsPZB, LZB, ZUB/Integra, ETCS

Technical details TRAXX BR 185.1

Data general
ManufacturerBombardier
Build since2001 - 2004
Countries/HomologationsD
D/A
D/A/CH
Dimensions
Track gauge1,435 mm
Wheelset arrangementBo’Bo’
Wheel diameter1,250 mm
Length over buffer18,900 mm
Total height4,385 mm
Total width2,978 mm
Weight
Total weight82 tons
Wheelset load20.5 tons
Traction, Engine & Power
SuppliesElektric
Power5,600 kW
Voltage System15 kV, 16.7 Hz~
25 kV, 50 Hz~
Speed & Traction performance
Maximum speed140 km/h
Starting tractive effort300 kN
Continuous tractive effort265 kN
Minimum curve radius80 m
Safety SystemsPZB, LZB, ZUB/Integra, ETCS

Countries/Homologations

Countries/Homologations TRAXX BR 185.1
D
D/A
D/A/CH

Alpha Trains Belgium N.V.
Leon Stynenstraat 75A
2000 Antwerp
+32 3 808 77 00
locomotives_at_alphatrains.eu

TRAXX BR 185.2


The BR 185.2 is an AC (alternating current) locomotive from Bombardier‘s Traxx family. The locomotive were built from 2005 to 2009, and can be used for passenger and freight operations. Alpha Trains is one of the main lessors of these assets.

Quickinfo

ManufacturerBombardier
Build since2005 - 2009
SuppliesElectric
Power5,600 kW
Countries/HomologationsD/A,D/A/HU,D/A/CH,D/A-S/N
Safety SystemsPZB, LZB, ZUB/Integra, ATESS

Technical details TRAXX BR 185.2

Data general
ManufacturerBombardier
Build since2005 - 2009
Countries/HomologationsD/A
D/A/HU
D/A/CH
D/A-S/N
Dimensions
Track gauge1,435 mm
Wheelset arrangementBo’Bo’
Wheel diameter1,250 mm (if new)
Length over buffer18,900 mm
Total height4,270 mm
Total width2,978 mm
Weight
Total weight84 tons
Wheelset load21 tons
Traction, Engine & Power
SuppliesElectric
Power5,600 kW
Voltage System15 kV, 16.7 Hz~
25 kV, 50 Hz~
Speed & Traction performance
Maximum speed140 km/h
Starting tractive effort300 kN
Continuous tractive effort270 kN
Minimum curve radius100 m
Safety SystemsPZB, LZB, ZUB/Integra, ATESS

Countries/Homologations

Countries/Homologations TRAXX BR 185.2
D/A
D/A/HU
D/A/CH
D/A-S/N

Alpha Trains Belgium N.V.
Leon Stynenstraat 75A
2000 Antwerp
+32 3 808 77 00
locomotives_at_alphatrains.eu

TRAXX E 483


The E 483 is a DC (direct current) electric mainline locomotive from Bombardier‘s Traxx family. The locomotive is Alpha Trains‘ core asset in Italy. The locomotives have proven to be highly reliable. Alpha Trains is the main lessor of this asset.

Quickinfo

ManufacturerBombardier
Build since2008/2009
SuppliesElectric
Power5,600 kW
Countries/HomologationsIT
Safety SystemsSCMT

Technical details TRAXX E 483

Data general
ManufacturerBombardier
Build since2008/2009
Countries/HomologationsIT
Dimensions
Track gauge1,435 mm
Wheelset arrangementBo’Bo’
Wheel diameter1,250 mm
Length over buffer18,900 mm
Total height4,270 mm
Total width3,079 mm
Weight
Total weight83 tons
Wheelset load20.75 tons
Traction, Engine & Power
SuppliesElectric
Power5,600 kW
Voltage System3 kV DC
Speed & Traction performance
Maximum speed140 km/h
Starting tractive effort300 kN
Continuous tractive effort270 kN
Minimum curve radius100 m
Safety SystemsSCMT

Countries/Homologations

Countries/Homologations TRAXX E 483
IT

Alpha Trains Belgium N.V.
Leon Stynenstraat 75A
2000 Antwerp
+32 3 808 77 00
locomotives_at_alphatrains.eu

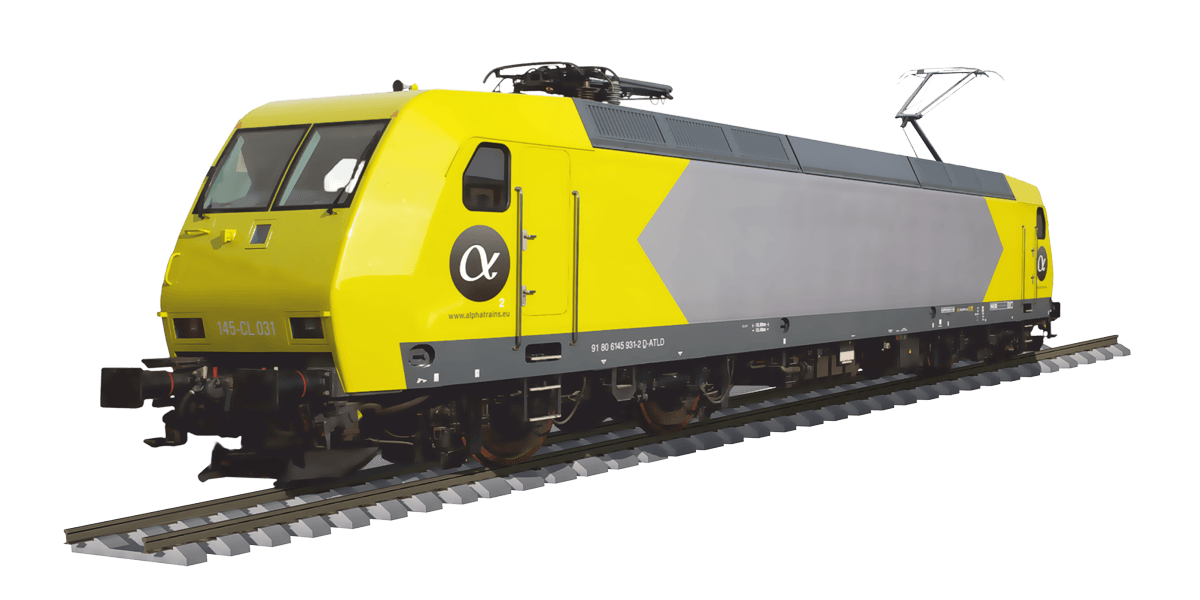

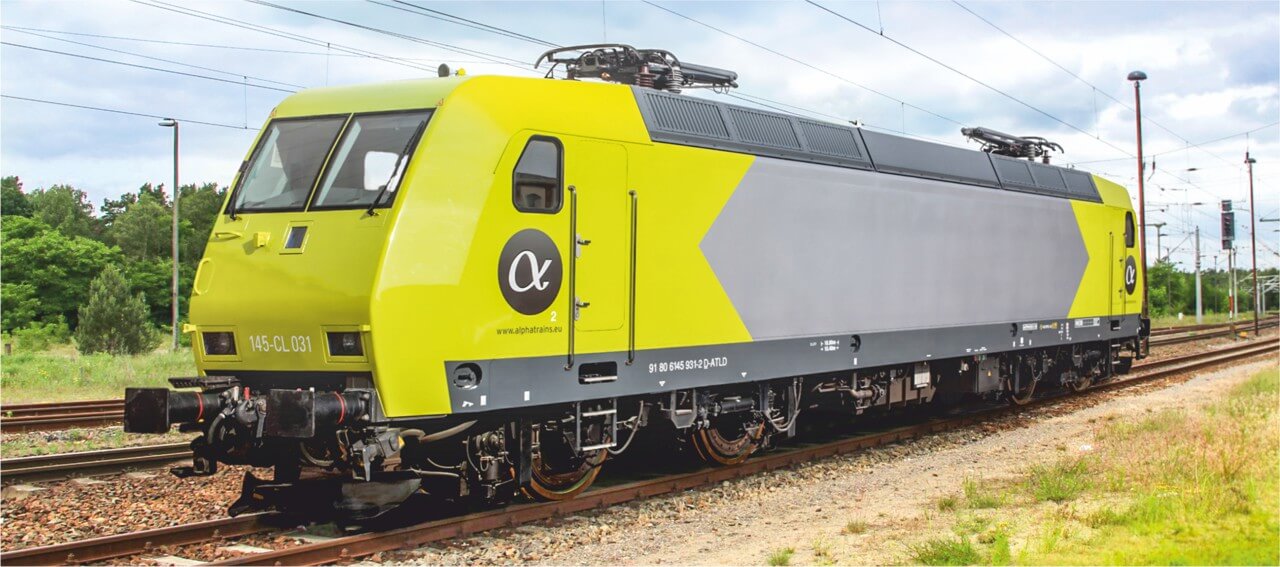

BR 145


The BR 145 is an electric mainline locomotive from Bombardier. The first series were built in 2001/2002 and until now this locomotive has proven its reliability in long-haul freight transport.

Quickinfo

ManufacturerBombardier
Build since2001/2002
SuppliesElectric
Power4,200 kW
Countries/HomologationsD
Safety SystemsPZB, LZB

Technical details BR 145

Data general
ManufacturerBombardier
Build since2001/2002
Countries/HomologationsD
Dimensions
Track gauge1,435 mm
Wheelset arrangementBo’Bo’
Wheel diameter1,250 mm
Length over buffer18,900 mm
Total height4,385 mm
Total width2,978 mm
Weight
Total weight82 tons
Wheelset load20.5 tons
Traction, Engine & Power
SuppliesElectric
Power4,200 kW
Voltage System15 kV, 16.7 Hz~
Speed & Traction performance
Maximum speed140 km/h
Starting tractive effort300 kN
Continuous tractive effort265 kN
Minimum curve radius100 m
Safety SystemsPZB, LZB

Countries/Homologations

Countries/Homologations BR 145
D

Alpha Trains Belgium N.V.
Leon Stynenstraat 75A
2000 Antwerp
+32 3 808 77 00
locomotives_at_alphatrains.eu

Diesel Locomotives

EURO 4000


The Euro 4000 is a six axle diesel-electric locomotive from Stadler Rail Valencia. The locomotive has been built since 2006 and is equipped with the most powerful diesel engine available in Europe built by EMD.

Quickinfo

ManufacturerStadler/EMD
Build since2006
SuppliesDiesel-Electric
Power3,178 kW
Countries/HomologationsES,ES/P
Safety SystemsASFA, CONVEL

Technical details EURO 4000

Data general
ManufacturerStadler/EMD
Build since2006
Countries/HomologationsES
ES/P
Dimensions
Track gauge1,668 mm
Wheelset arrangementCo
Wheel diameter1,067 mm
Length over buffer23,020 mm
Total height4,264 mm
Total width2,850 mm
Weight
Total weight123 tons
Wheelset load20.5 tons
Traction, Engine & Power
ManufacturerEMD
SuppliesDiesel-Electric
Power3,178 kW
Speed & Traction performance
Maximum speed120 km/h
Starting tractive effort400 kN
Continuous tractive effort265 kN
Electrical transmissionAC/DC
Minimum curve radius100 m
Safety SystemsASFA, CONVEL

Countries/Homologations

Countries/Homologations EURO 4000
ES
ES/P

Alpha Trains Belgium N.V.
Leon Stynenstraat 75A
2000 Antwerp
+32 3 808 77 00
locomotives_at_alphatrains.eu

EURO 4001


The Euro4001 locomotive type is essentially the diesel version of the Stadler Eurodual locomotive, designed for freight service to be used on European Railways, fulfilling new standards and incorporating service proven components and systems from the Euro4000 and EuroLight platforms.

Quickinfo

ManufacturerStadler/CAT
Build since2018
SuppliesDiesel-Electric
Power3,000 kW
Countries/HomologationsF/(B)

Technical details EURO 4001

Data general
ManufacturerStadler/CAT
Build since2018
Countries/HomologationsF/(B)
Dimensions
Track gauge1,435 mm
Wheelset arrangementCo‘Co‘
Wheel diameter1,100/1,020 mm
Length over buffer23,020 mm
Total height4,289 mm
Total width2,900 mm
Weight
Total weight120-123 tons
Wheelset load19-21 tons
Traction, Engine & Power
ManufacturerCaterpillar CAT 16C175
SuppliesDiesel-Electric
Power3,000 kW
Speed & Traction performance
Maximum speed120 km/h (opt. 160 km/h)
Starting tractive effort500 kN
Continuous tractive effort430 kN
Minimum curve radius90 m

Countries/Homologations

Countries/Homologations EURO 4001
F/(B)

Alpha Trains Belgium N.V.
Leon Stynenstraat 75A
2000 Antwerp
+32 3 808 77 00
locomotives_at_alphatrains.eu

CLASS 66


The Class 66 is a six axle diesel-electric locomotive from EMD. The locomotive was built for the heavy-freight market across Europe.

Quickinfo

ManufacturerEMD
Build sincesince 2006
SuppliesDiesel-Electric
Power2,462 kW
Countries/HomologationsD/PL
Safety SystemsPZB, SHP

Technical details CLASS 66

Data general
ManufacturerEMD
Build sincesince 2006
Countries/HomologationsD/PL
Dimensions
Track gauge1,435 mm
Wheelset arrangementCo
Wheel diameter1,067 mm
Length over buffer21,350 mm
Total height3,900 mm
Total width2,700 mm
Weight
Total weight129.6 Tonnen
Wheelset load21.6 Tonnen
Traction, Engine & Power
ManufacturerEMD
SuppliesDiesel-Electric
Power2,462 kW
Speed & Traction performance
Maximum speed120 km/h
Starting tractive effort480 kN
Minimum curve radius105 m
Safety SystemsPZB, SHP

Countries/Homologations

Countries/Homologations CLASS 66
D/PL

Alpha Trains Belgium N.V.
Leon Stynenstraat 75A
2000 Antwerp
+32 3 808 77 00
locomotives_at_alphatrains.eu

G 2000


The G 2000 is a four axle diesel-hydraulic locomotive from Vossloh. The locomotive can be used for heavy shunting and mainline operations. The wheel set is equipped with a mechanical drive shaft. Alpha Trains is one of the main lessors of this asset.

Quickinfo

ManufacturerVossloh/CAT
Build since2000
SuppliesDiesel-Hydraulic
Power2,240 kW
Countries/HomologationsD,D/NL,D/B/NL,B/NL,IT
Safety SystemsPZB, ATB, Memor, ETCS, KVB, SCMT

Technical details G 2000

Data general
ManufacturerVossloh/CAT
Build since2000
Countries/HomologationsD
D/NL
D/B/NL
B/NL
IT
Dimensions
Track gauge1,435 mm
Wheelset arrangementB’B’
Wheel diameter1,000 mm
Length over buffer17,400 mm
Total height4,250 mm
Total width3,080 mm
Weight
Total weight87.3 tons
Wheelset load21.8 tons
Traction, Engine & Power
ManufacturerCaterpillar
SuppliesDiesel-Hydraulic
Power2,240 kW
Speed & Traction performance
Maximum speed120 km/h
Starting tractive effort283 kN
Minimum curve radius80 m
Safety SystemsPZB, ATB, Memor, ETCS, KVB, SCMT

Countries/Homologations

Countries/Homologations G 2000
D
D/NL
D/B/NL
B/NL
IT

Alpha Trains Belgium N.V.
Leon Stynenstraat 75A
2000 Antwerp
+32 3 808 77 00
locomotives_at_alphatrains.eu

ER 20


The ER 20 is a four axle diesel-electric locomotive from Siemens for the passenger and freight market.

Quickinfo

ManufacturerSiemens/MTU
Build since2002
SuppliesDiesel-Electric
Power2,000 kW
Countries/HomologationsD
Safety SystemsPZB

Technical details ER 20

Data general
ManufacturerSiemens/MTU
Build since2002
Countries/HomologationsD
Dimensions
Track gauge1,435 mm
Wheelset arrangementBo’Bo’
Wheel diameter1,100 mm
Length over buffer19,275 mm
Total height4,180 mm
Total width2,980 mm
Weight
Total weight80 tons
Wheelset load20 tons
Traction, Engine & Power
ManufacturerMTU
SuppliesDiesel-Electric
Power2,000 kW
Speed & Traction performance
Maximum speed140 km/h
Starting tractive effort235 kN
Minimum curve radius100 m
Safety SystemsPZB

Countries/Homologations

Countries/Homologations ER 20
D

Alpha Trains Belgium N.V.
Leon Stynenstraat 75A
2000 Antwerp
+32 3 808 77 00
locomotives_at_alphatrains.eu

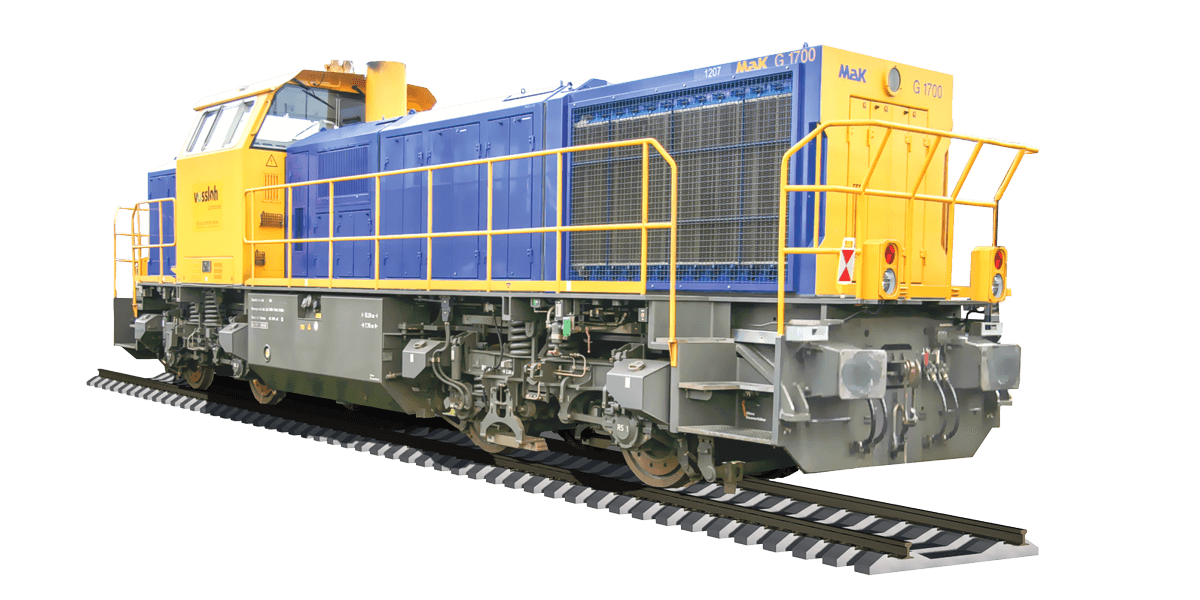

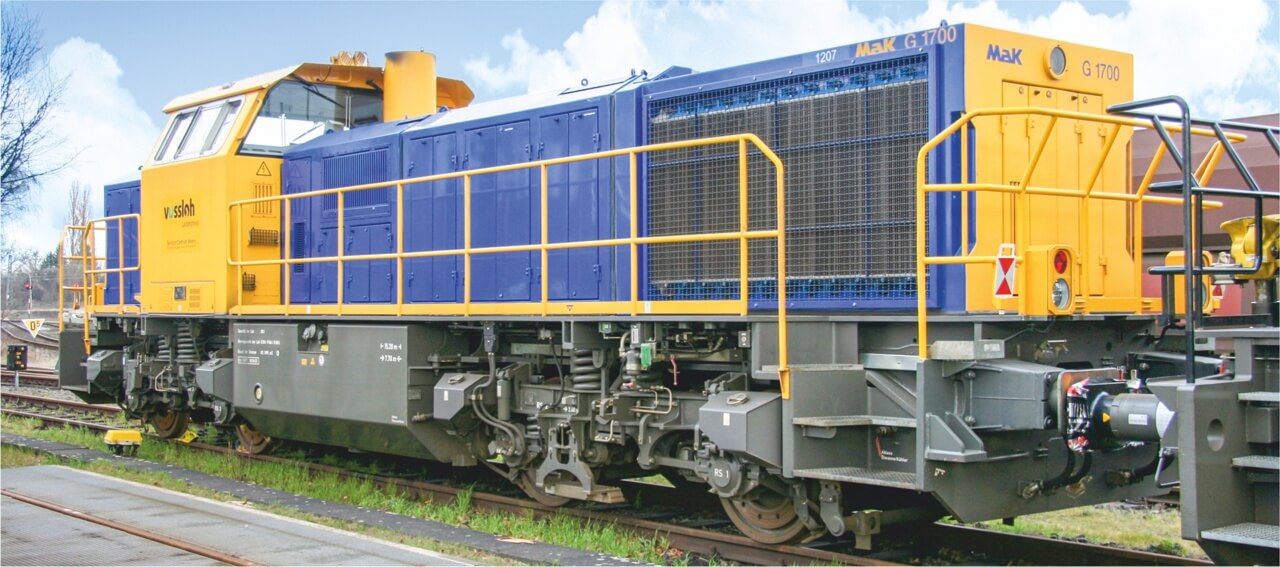

G 1700


The G 1700 is a four axle diesel-hydraulic locomotive from Vossloh. The locomotive can be used for heavy shunting and mainline operations. The G 1700 can be equip-ped with remote control, which allows shunting to be controlled outside the locomotive.

Quickinfo

ManufacturerVossloh/CAT
Build since2002
SuppliesDiesel-Hydraulic
Power1,700 kW
Countries/HomologationsD
Safety SystemsPZB

Technical details G 1700

Data general
ManufacturerVossloh/CAT
Build since2002
Countries/HomologationsD
Dimensions
Track gauge1,435 mm
Wheelset arrangementB’B’
Wheel diameter1,000 mm
Length over buffer15,200 mm
Total height4,220 mm
Total width3,080 mm
Weight
Total weight80 tons
Wheelset load20 tons
Traction, Engine & Power
ManufacturerCaterpillar
SuppliesDiesel-Hydraulic
Power1,700 kW
Speed & Traction performance
Maximum speed100 km/h
Starting tractive effort273 kN
Minimum curve radius80 m
Safety SystemsPZB

Countries/Homologations

Countries/Homologations G 1700
D

Alpha Trains Belgium N.V.
Leon Stynenstraat 75A
2000 Antwerp
+32 3 808 77 00
locomotives_at_alphatrains.eu

G 1206


The G1206 is a four axle diesel-hydraulic locomotive from Vossloh. The locomotive can be used for heavy shunting and mainline operations. The G 1206 can be equipped with remote control, which allows shunting to be controlled outside the locomotive. Alpha Trains is one of the main lessors of this asset.

Quickinfo

ManufacturerVossloh/CAT
Build since1997
SuppliesDiesel-Hydraulic
Power1,500 kW
Countries/HomologationsD,D/F,D/NL
Safety SystemsPZB, KVB, Memor 2+, ATB, ETCS

Technical details G 1206

Data general
ManufacturerVossloh/CAT
Build since1997
Countries/HomologationsD
D/F
D/NL
Dimensions
Track gauge1,435 mm
Wheelset arrangementB’B’
Wheel diameter1,000 mm
Length over buffer14,700 mm
Total height4,220 mm
Total width3,080 mm
Weight
Total weight87.3 tons
Wheelset load22 tons
Traction, Engine & Power
ManufacturerCaterpillar
SuppliesDiesel-Hydraulic
Power1,500 kW
Speed & Traction performance
Maximum speed100 km/h
Starting tractive effort300 kN
Continuous tractive effort276 kN
Minimum curve radius60 m
Safety SystemsPZB, KVB, Memor 2+, ATB, ETCS

Countries/Homologations

Countries/Homologations G 1206
D
D/F
D/NL

Alpha Trains Belgium N.V.
Leon Stynenstraat 75A
2000 Antwerp
+32 3 808 77 00
locomotives_at_alphatrains.eu

G 1000


The G 1000 is a four axle diesel-hydraulic locomotive from Vossloh. The locomotive can be used for heavy shunting and light mainline operations. The G 1000 can be equipped with remote control, which allows shunting to be controlled outside the locomotive.

Quickinfo

ManufacturerVossloh/MTU
Build since2002
SuppliesDiesel-Hydraulic
Power1,100 kW
Countries/HomologationsD,D/L,F,IT
Safety SystemsPZB, ETCS, SCMT, KVB

Technical details G 1000

Data general
ManufacturerVossloh/MTU
Build since2002
Countries/HomologationsD
D/L
F
IT
Dimensions
Track gauge1,435 mm
Wheelset arrangementB’B’
Wheel diameter1,000 mm
Length over buffer14,130 mm
Total height4,225 mm
Total width3,080 mm
Weight
Total weight80 tons
Wheelset load20 tons
Traction, Engine & Power
ManufacturerMTU
SuppliesDiesel-Hydraulic
Power1,100 kW
Speed & Traction performance
Maximum speed100 km/h
Starting tractive effort259 kN
Minimum curve radius60 m
Safety SystemsPZB, ETCS, SCMT, KVB

Countries/Homologations

Countries/Homologations G 1000
D
D/L
F
IT

Alpha Trains Belgium N.V.
Leon Stynenstraat 75A
2000 Antwerp
+32 3 808 77 00
locomotives_at_alphatrains.eu
