Trains Overview

Electric railcars (EMU)

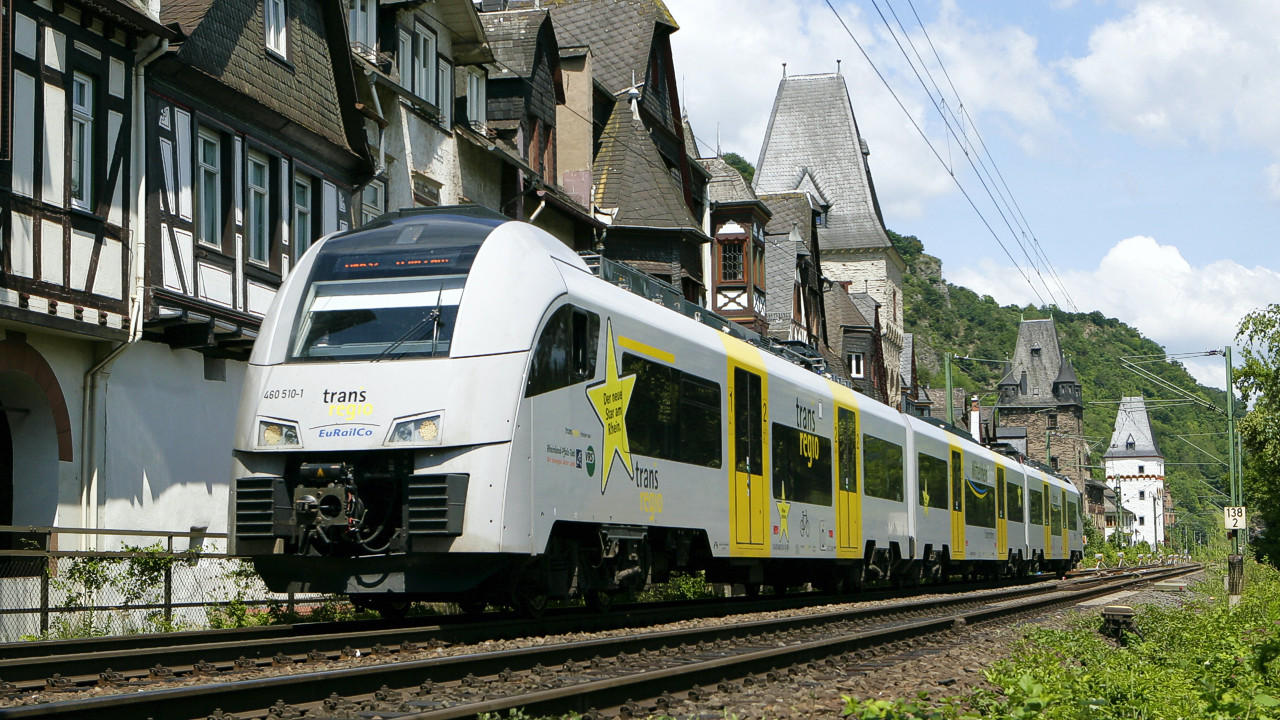

DESIRO ML - Siemens


Data general
ManufacturerSiemens
Type designationDESIRO ML
Construction yearssince 2008
Number of seatsEMU3: 254 seats

Technical details - DESIRO ML

Dimensions
Track gauge (standard gauge)1,435 mm
Wheelset arrangementBo’Bo’+2’2’+Bo’Bo’
Wheel diameter (new)850/760 mm
Length over coupling70,930 mm
Vehicle height4,343 mm
Vehicle outer width2,820 mm
Floor height passenger area
(Low-floor / high-floor)
Low-floor: 800 mm
Weight
Vehicle mass (empty)134.0 tons
Vehicle mass (max.)182.3 tons
Max. axle loadbis zu 16.8 tons
Traction, Engine & Power
Supplies/UnitElectrical (EMU)
Drive units/engines8
Installed drive power2,600 kW
Voltage systems (EMU)15 kV 16.7 Hz ~
Current/power transmissionPower converter asynchronous machine
Speed & Traction performance
Maximum speed160 km/h
Starting tractive effort170 kN
Installed train safety systemsINDUSI I60R
Max. Number of vehicles
in multiple traction
4
Specials
FeaturesCrashtauglich entsprechend TSI Szenario 1, 2, 3 und 4;
Brandschutz DIN 5510 Brandschutzstufe 3;
TSI Noise;
Videoüberwachung;
Fahrgastzähleinrichtung
