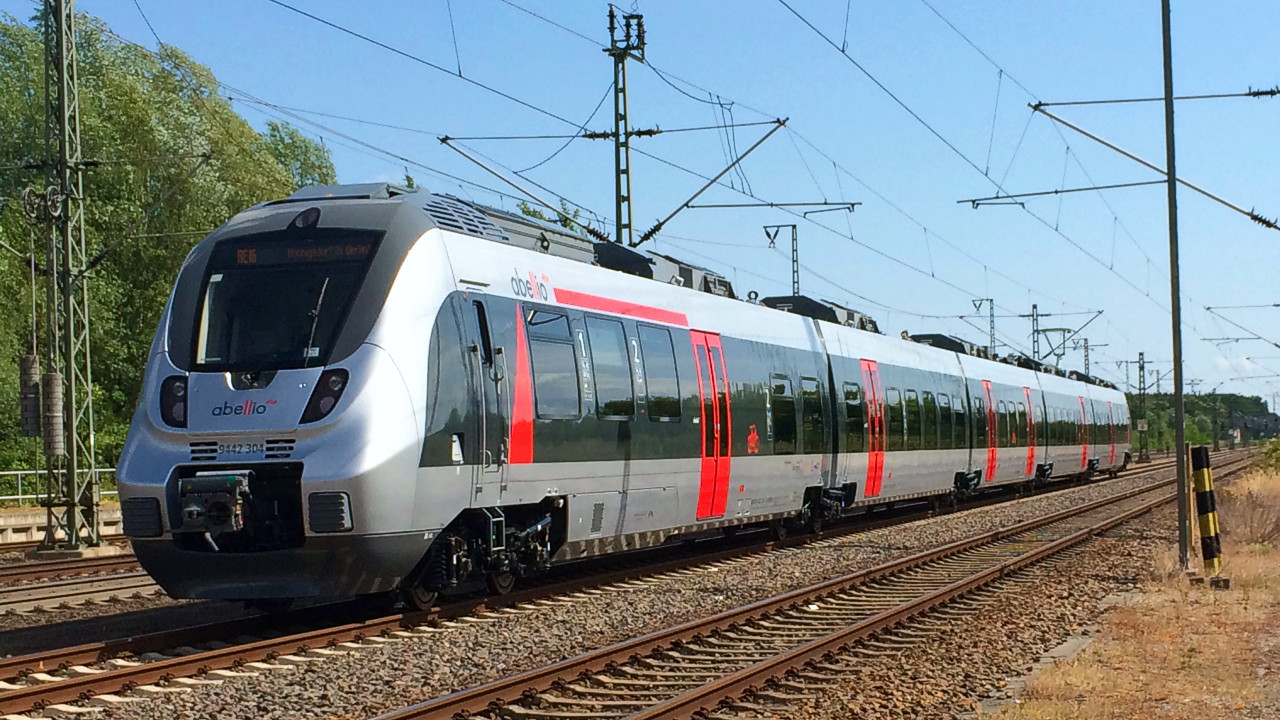

TALENT 2 - Bombardier


Data general
ManufacturerBombardier
Type designationTALENT 2
Construction yearssince 2015
Number of seatsEMU3: 141 seatsEMU5: 234 seats

Technical details - TALENT 2

Dimensions
Track gauge (standard gauge)1,435 mm
Wheelset arrangementEMU3: Bo’(2’)(2’)Bo’EMU5: Bo"(2’)(2’)(Bo")(2’) Bo"
Wheel diameter (new)840/770 mm
Length over couplingEMU3: 56,200 mmEMU5: 88,400 mm
Vehicle height4,260 mm
Vehicle outer width2,926 mm
Floor height passenger area
(Low-floor / high-floor)
695 mm / 1,250 mm
Weight
Vehicle mass (empty)EMU3: 108.5 tonsEMU5: 163.8 tons
Vehicle mass (max.)EMU3: 133.5 tonsEMU5: 204.9 tons
Max. axle loadMax. 19.1 tons
Traction, Engine & Power
Supplies/UnitElectrical (EMU)
Drive units/enginesEMU3: 4EMU3: 6
Installed drive powerEMU3: 2,020 kWEMU5: 3,030 kW
Rated powerEMU3: 1,504 kWEMU5: 2,256 kW
Voltage systems (EMU)15 kV 16.7 Hz ~
Current/power transmissionPower converter asynchronous machine
Speed & Traction performance
Maximum speed160 km/h
Starting tractive effortEMU3: 140.1 kNEMU5: 211.2 kN
Installed train safety systemsEbicab 500
Max. Number of vehicles
in multiple traction
3
Specials
FeaturesCrashausrüstung entsprechend der DIN EN 15227;
Fahrzeug TSI SRT konform;
Fahrzeug TSI PRM konform;
Laptopsteckdosen bei 50% aller Sitze;
Videoinnenüberwachung;
automatische Fahrgastzähleinrichtung;
EBuLa Ausrüstung;
Mobilfunkrepeater;
Sitzlücke im Hochflurbereich
